循環： Z 降層面銑

定義

面銑刀具路徑策略的定義。

提供三種可能性：

  • 雙向

  • 單向

  • 雙向 + 圓弧

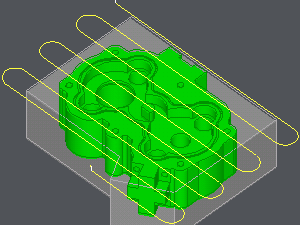

雙向

The tool faces all the machining zone without retracting.
The first pass is machined in a direction, the following pass is done in the other direction and so on.

單向

The tool faces all the machining zone respecting the same direction.
The tool retracts between each pass and comes back for the following pass in rapid speed.

退刀由參數定義 退刀點替代

雙向 + 圓弧

The tool faces all the machining zone without retracting.
The first pass is machined in a direction, the following pass is done in the other direction and so on. An arc is defined between two passes.

僅當輪廓為開放式時才可用的模式。
