Ciclo: Finitura ZigZag in richiamo Z

Definizione

Definizione della strategia di percorso utensile di finitura.

Sono offerte tre possibilità:

  • 2 direzioni

  • 1 direzione

  • 2 direzioni + arco

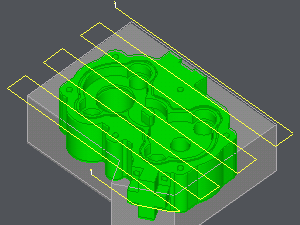

2 direzioni

The tool faces all the machining zone without retracting.
The first pass is machined in a direction, the following pass is done in the other direction and so on.

1 direzione

The tool faces all the machining zone respecting the same direction.
The tool retracts between each pass and comes back for the following pass in rapid speed.

la risalita è definita dal parametro Alt. pt. risalita

2 direzioni + arco

The tool faces all the machining zone without retracting.
The first pass is machined in a direction, the following pass is done in the other direction and so on. An arc is defined between two passes.

Modalità disponibile solo se il profilo è aperto.
