Features

Functions
int	SPI_FEAT_append_feature_pocket (const std::string &dirName, const std::string &fileName, int planeNb, double depth, double slopeAngle, double bottomRadius)
	Creates a pocket feature from a XML file describing the feature profile.
int	SPI_FEAT_affect_feature_opelist (const std::string &oplDir, const std::string &oplName, int indfeat)
	Affect an opelist to a feature.

Detailed Description

Features functions

Function Documentation

SPI_FEAT_affect_feature_opelist()

int SPI_FEAT_affect_feature_opelist	(	const std::string &	oplDir,
		const std::string &	oplName,
		int	indfeat )

Affect an opelist to a feature.

Version

6.10

Parameters

[in]	oplDir	folder of the OPL file
[in]	oplName	name of the OPL file
[in]	indfeat	feature index

Returns

SPI_YES / SPI_NO

Remarks

If oplDir is a relative path, it should be relative to the Opelist folder of GO2cam. Consequently, if the file is inside this Opelist folder, oplDir can be null.

See also

SPI_FEAT_append_feature_pocket

SPI_FEAT_append_feature_pocket()

int SPI_FEAT_append_feature_pocket	(	const std::string &	dirName,
		const std::string &	fileName,
		int	planeNb,
		double	depth,
		double	slopeAngle,
		double	bottomRadius )

Creates a pocket feature from a XML file describing the feature profile.

Version

6.10

Parameters

[in]	dirName	folder of the XML file
[in]	fileName	name of the XML file
[in]	planeNb	plane number
[in]	depth	depth of the feature
[in]	slopeAngle	side taper angle (in degrees)
[in]	bottomRadius	bottom radius of the feature

Returns

Number of the feature created ( correct > 0, MAXELT => error )

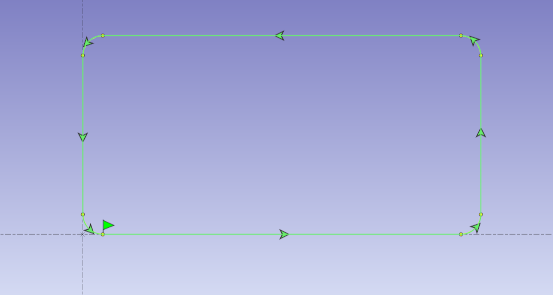

EXAMPLE XML

<?xml version="1.0" encoding="UTF-8"?>
<GO2cam_DefineFormTool>
   <Definition GO2cam="6.10.200" Unit="mm"/>
   <Profile>
      <Element Cut="YES" Type="LINE" xs="5" ys="0" xe="95" ye="0"/>
      <Element Cut="YES" Type="ARC" xs="95" ys="0" xe="100" ye="5" xc="95" yc="5" Way="CCW"/>
      <Element Cut="YES" Type="LINE" xs="100" ys="5" xe="100" ye="45"/>
      <Element Cut="YES" Type="ARC" xs="100" ys="45" xe="95" ye="50" xc="95" yc="45" Way="CCW"/>
      <Element Cut="YES" Type="LINE" xs="95" ys="50" xe="5" ye="50"/>
      <Element Cut="YES" Type="ARC" xs="5" ys="50" xe="0" ye="45" xc="5" yc="45" Way="CCW"/>
      <Element Cut="YES" Type="LINE" xs="0" ys="45" xe="0" ye="5"/>
      <Element Cut="YES" Type="ARC" xs="0" ys="5" xe="5" ye="0" xc="5" yc="5" Way="CCW"/>
   </Profile>
</GO2cam_DefineFormTool>
